Jacketing Isolpak CLAD

The self-adhesive, multi-layer jacketing solution for outdoor applications

The unique adhesive system of ISOLPAK CLAD 7 LAYERS offers excellent resistance to humidity and moisture, UV exposure and allows application in a wide range of weather conditions including lower temperature areas.

Play Video

Product introduction

Play Video

Mounting options

Play Video

Rendering

svg+xml;charset=utf

Isolpak CLAD benefits

Unbeatable advantages, low material cost, ease of Material preparation and fast installation

ISOLPAK CLAD is the revolutionary way of weather-proofing insulation: completely self-adhesive, it doesn’t require additional adhesive or mastic to create a seal or any special expensive tool.

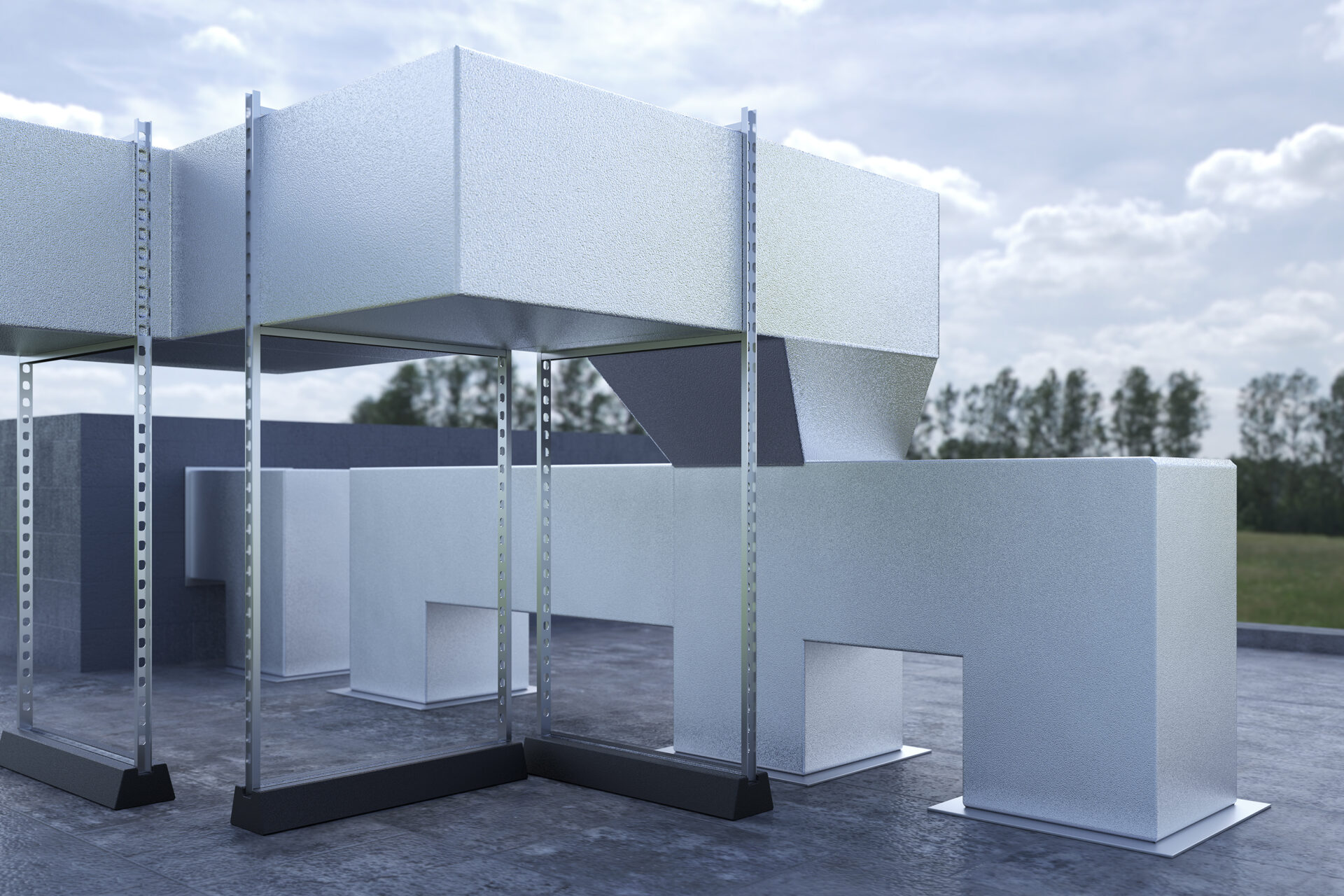

ISOLPAK CLAD can be used for sealing of seams and joints of aluminum coated insulation systems in air ducts and pipelines and for large-area lamination systems.

  • Coated with acrylic adhesive: it sticks extremely good on aluminum-laminate systems
  • Zero permeability: barrier against water and water vapor
  • Resistant to cold weathering
  • Very good ageing properties
  • Solvent free and extreme low VOC (Volatile Organic Compounds) values
  • Great chemical resistance
  • Easy to apply at high and low temperatures
  • Easy tool free installation
  • Time, labour and cost savings
  • Puncture and tear resistance
  • Available in 5 colors: white, silver, grey, black and silver embossed
ISOLPAK CLAD SILVER 7layer
1
Adhesive film Polyacrilic X-Linked: special adhesive for superior cold weather adhesion and for application on sites
2
Pure aluminum: technical advantages as zero permeability
3
Polymer film: the great advantages of PVC
4
Pure aluminum: technical advantages as chemical resistance
5
Polymer film: the great advantages of PVC
6
Pure aluminum: technical advantages as very good ageing properties
7
Transparent UV protection film: protection from external influences and corrosion, also in difficult environments

Result:

  • Self-adhesive alternative to metal jacketing
  • Excellent resistance to UV exposure, humidity and moisture
  • Easy, fast and clean installation

Technical Data Isolpak CLAD

Characteristics   Metric value   US value
Thickness    0,15 mm    7 mil
Elongation at break    > 50%
Tensile strength    > 55 N/cm  6 lbs/in
Adhesion to steel    > 12 N/cm  ca. 97 oz/in
Temperature resistance     -40 up to +130°C  -40 up to +270°F
180° Peel on SS 24h    36 N/25mm CF

Case studies

Download

Material safety data sheet

Catalog

Tech data
